BEDROCK
ADJUSTABLE DRILL MAST
High-quality, adjustable drill masts

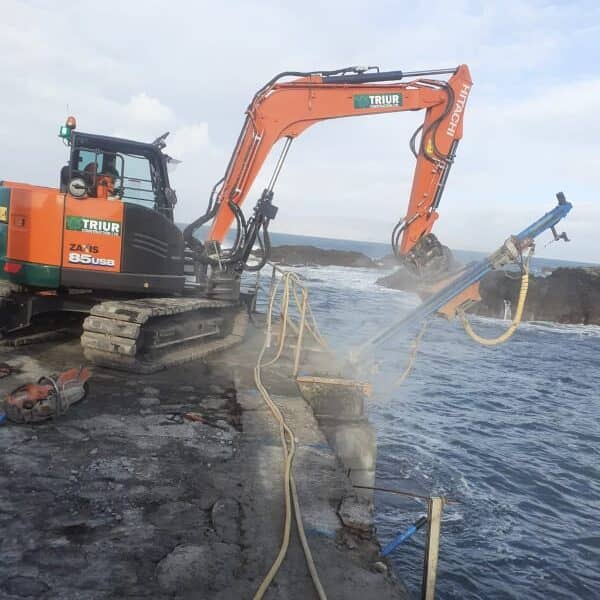

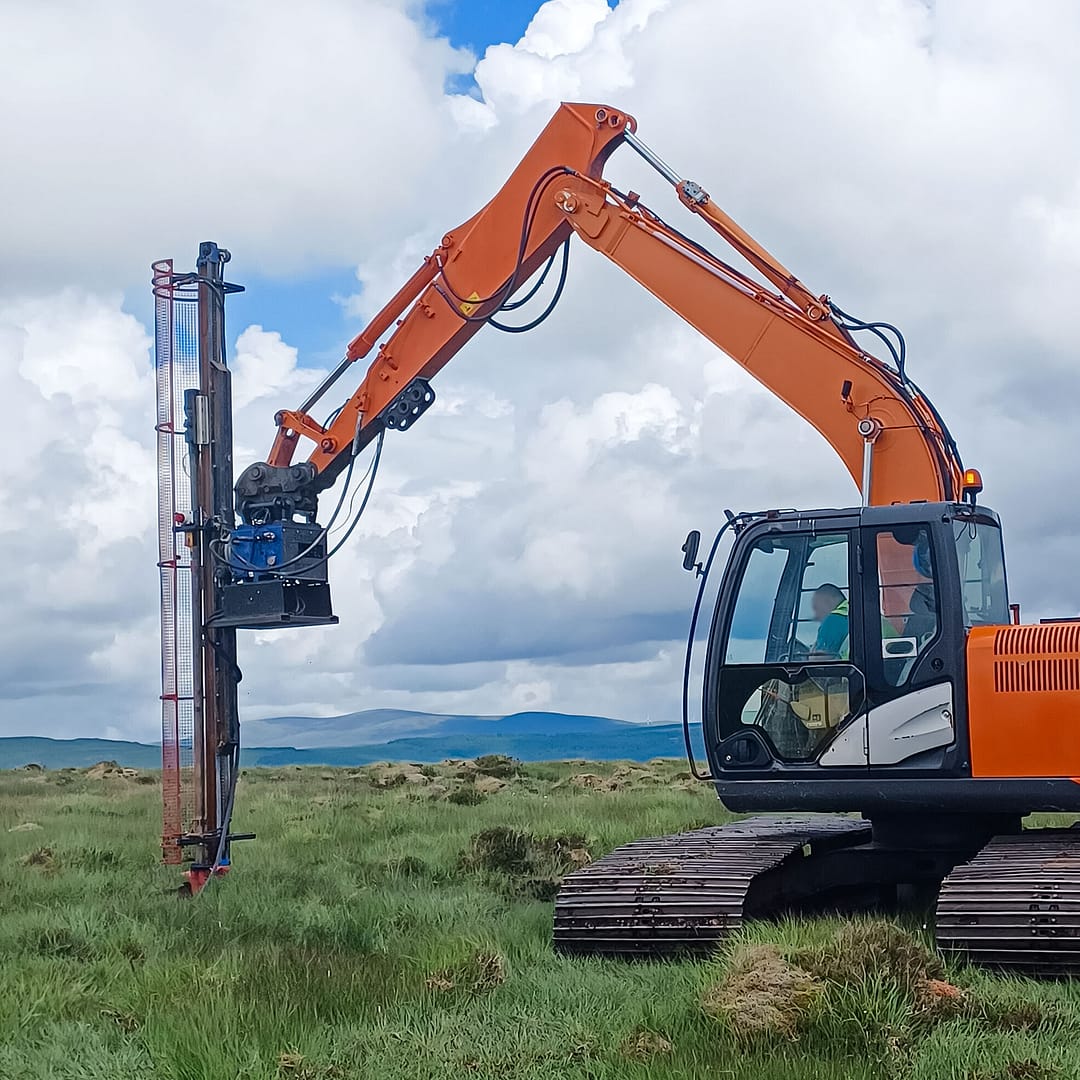

BEDROCK Drill masts are manufactured in various lengths from 2m to 5m. While often fitted on excavators, masts can be attached to Bobcat loading shovels, tractors, trucks, scaffolds etc.
Mounting positions are adjustable within structural limits. Custom designed reinforcement in longer masts will expand the flexibility and connection points.
Clients may provide their own interface adaptation system and/or mount the units in a standard fashion. Bespoke systems are also available from Bedrock.
Standard Features:
- Hinged Cage
- Professionally Designed High Quality Steel or Aluminium Frame
- Carrier Slide to accommodate all Drifter / Drill Makes
- Fixed Rod Guides
- Latch-able Safety Gate
- ESTOP with Pull Chord System
- Manual Control Spool Valve Blocks
- Manual Articulation functions
Optional Features:
- Radio Remote Controlling System
- Hydraulically Operated Articulation (“X”, “Y” and “Z” Axes)
- Hydraulically Operated Safety Cage for horizontal drilling
- Hydraulic Rod Clamping System (25mm to 70mm)
- Excavator specific Mounting Systems
SPECIFICATIONS
PRODUCT SPECIFICATIONS
Read below for more specifications on this product:
- Drill Masts from 2.0M to 5M in Steel or Aluminium
- Torque capacity 1000NM and 2000NM Versions
- Feed / Pull back of up to 2000KG
- Cage on Telescopic Struts or Hydraulically Operated
- “X”, “Y” and “Z” Axes Movement (manual or hydraulic)
- To fit Doofor, Marini, Eurodrill & several other Drifters
- Rod Guide or Hydraulic Clamp (25mm to 70mm)
- Safety Compliant for all Jurisdictions & CE Certified
Looking for more details?
Download our product brochure.
